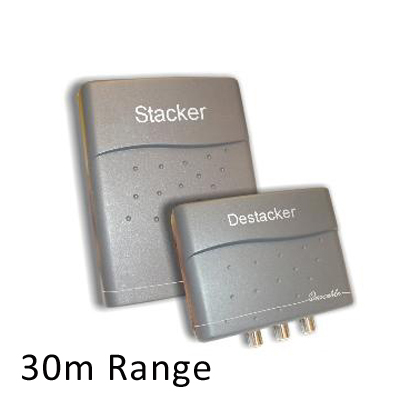

Global Stacker Destacker 30m

DESCRIPTION of a Stacker De-Stacker

Unit consists of:

• Stacker unit: 2 inputs, 1 output
• Destacker unit: 1 input, 2 outputs
• Power unit
• Connection type: F-type
• Range: up to 30m

Stacker Specifications

• LNB 1 Input:  950-2150MHz
• LNB 2 Input:  47-2150MHz
• Common Output:  47-3850MHz

Destacker Specifications

• Common Input:  47-3850MHz
• LNB 1 Output:  950-2150MHz
• LNB 2 Output:  47-2150MHz
• Manufacturer: Global
• Colour: Grey

USES of a Stacker De-Stacker

• The Global Stacker De-stacker allow the upgrade of an 2 satellite dish feeds to be run down a single cable (stacked) and then split back out (destacked) into 2 feeds to feed a PVR satellite box (Sky+ etc)


Uses include:

• Feed a Sky+ box using a single cable
• Feed a Sky HD box using a single cable
• A non-subcription PVR box (Freesat+ HD Receiver)


ADVANTAGES of a Stacker De-Stacker

• Solves a major problem faced when installing or upgrading to Sky+ i.e. what to do when there is only one cable in the wall
• Works extremely well
• Easy to install
• Neat and compact unit

DISADVANTAGES of a Stacker De-Stacker

• The major drawback of a Stacker is the cost of the unit
• The stacker needs to be correctly installed if it is to work correctly
• Struggles on cables runs of more than 30m - but this is rarely needed
